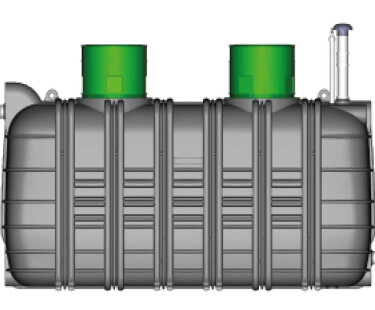

The BIOROCK-ST Primary Tanks are available in 3 x volumes: 2,000, 3,000 & 5,000 Litres.
The volume and overall capacity can be increased when installing the tanks in series.
The BIOROCK-ST tanks are sized to enable two tanks to be placed side by side making transportation more economical.
Two integrated slots on the base of the tank enable safe movement by fork lift vehicles. Four lifting eyes are situated on the top corners of each tank, enabling lifting for ease of installation.
Four rings are positioned on the lower corners of each tank allowing the anchoring of the tank using straps when installed in wet ground conditions.
All BIOROCK-ST Primary Tanks have an integrated extension set.
All BIOROCK Primary tanks are standard equipped with an effluent filter in the water outlet pipe. For specification, see "Options" (Effluent Filter).
| spec | value |
|---|---|
| Length | 3800 mm |
| Width | 1150 mm |
| Height | 2285 mm |
| Weight | 384 kg |
| Volume | 5000 litres |
