BIOROCK Sewage / Waste water treatment plants

BIOROCK Small-sized systems

Domestic Waste Water Treatment - Septic Tank upgrade

BIOROCK offers a complete range of compact package waste water treatment plants, denominated in "up to" 4, 5, 6, 10, 15 and 30 person systems. Our units can be combined to cater for larger projects (MULTIROCK Systems).

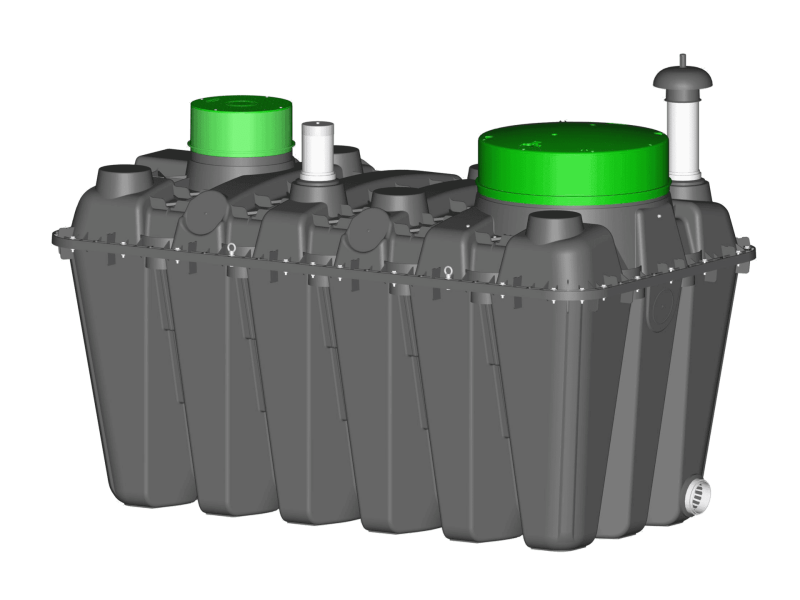

ECOROCK-1500

Small Sewage Treatment Unit for up to 6 persons

persons	4-6
length	1150 mm
width	1150 mm
height	2175 mm
weight	186 kg
warranty 25 year HDPE

ECOROCK-2000

Small Sewage Treatment Unit for up to 10 persons

persons	7-10
length	1450 mm
width	1150 mm
height	2175 mm
weight	241 kg
warranty 25 year HDPE

ECOROCK-3000

Small Sewage Treatment Unit for up to 15 persons

persons	11-15
length	2150 mm
width	1150 mm
height	2175 mm
weight	200 kg
warranty 25 year HDPE

ECOROCK-5000

Small Sewage Treatment Plant for 30 persons

persons	30
length	3500 mm
width	1150 mm
height	2175 mm
weight	680 kg
warranty 25 year HDPE

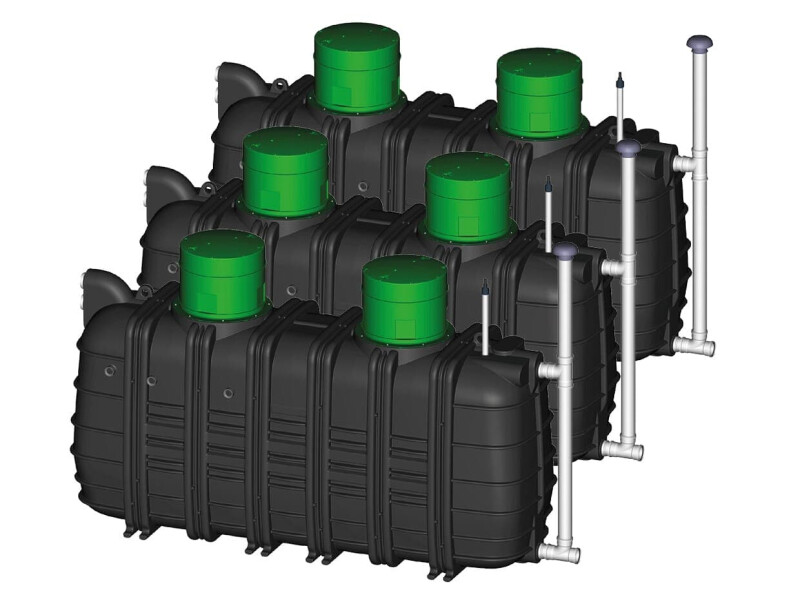

BIOROCK Multirock

ECOROCK-5000 Treatment Units installed in parallel up to 300 PE

persons

>60

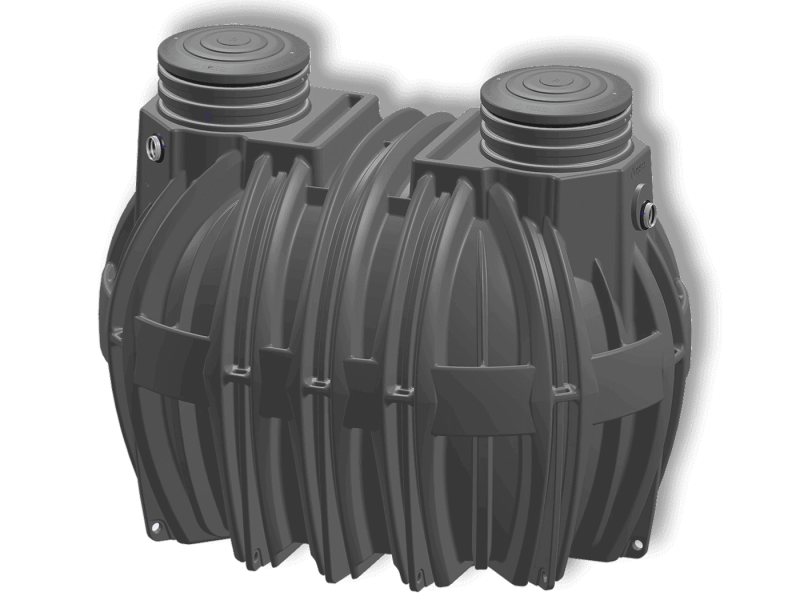

BIOROCK Primary tanks

Primary tanks For installation in front of the Treatment Units

BIOROCK offers an extensive range of Primary Tanks ranging from 2,000 to 15,000 litres capacities. The capacity can be increased when our tanks are installed in series or in parallel.

BIOROCK-ST1-2000

2,000 Litres primary tank

length	1400 mm
width	1150 mm
height	2040 mm
weight	205 kg
warranty 25 year HDPE

BIOROCK-ST1-3000

3,000 Litres Primary Tank

length	2150 mm
width	1150 mm
height	2040 mm
weight	230 kg
warranty 25 year HDPE

BIOROCK-ST1-5000

5,000 Litres Primary Tank

length	3500 mm
width	1150 mm
height	2175 mm
weight	408 kg

BIOROCK ST-7500

7,500 Litres primary tank

length	4050 mm
width	1600 mm
height	1550 mm
weight	330 kg
warranty 25 year HDPE

BIOROCK ST-10000

10,000 Litres primary tank

length	2800 mm
width	2240 mm
height	2257 mm
weight	500 kg
warranty 25 year HDPE

BIOROCK PT-15000

15,000 Litres primary tank

length	4050 mm
width	2240 mm
height	2257 mm
weight	700 kg
warranty 25 year HDPE

Accessories

Accesoiries For Installation and maintenance of the BIOROCK systems

BIOROCK offers a complete range of optional parts for the installation and maintenance of the BIOROCK units:

Rotomoulded extension pieces for deeper installation of our tanks.
Single piece sampling chambers – no joints and lower installation costs.
Single piece pump chambers – no joints and lower installation costs.
Complete "High level discharge system" equipped with a reliable, high-quality pump kit.
Covers
Anchoring kits for difficult sites (wet sites etc)
Effluent Management System developped for BIOROCK MULTIROCK Modular installations.
